How To Order
To order the strip light to a specific length (eg 1.3 meters) simply choose the “per meter length” option.
As this strip is charged as a per meter length simply choose quantity 2 and add to cart. You can then “add cart note” and type in the cart note that you require the strip to be 1.3 meters in length.
If you are unsure of this process or you would like some expert guidance please call our office on 1300 589 726.

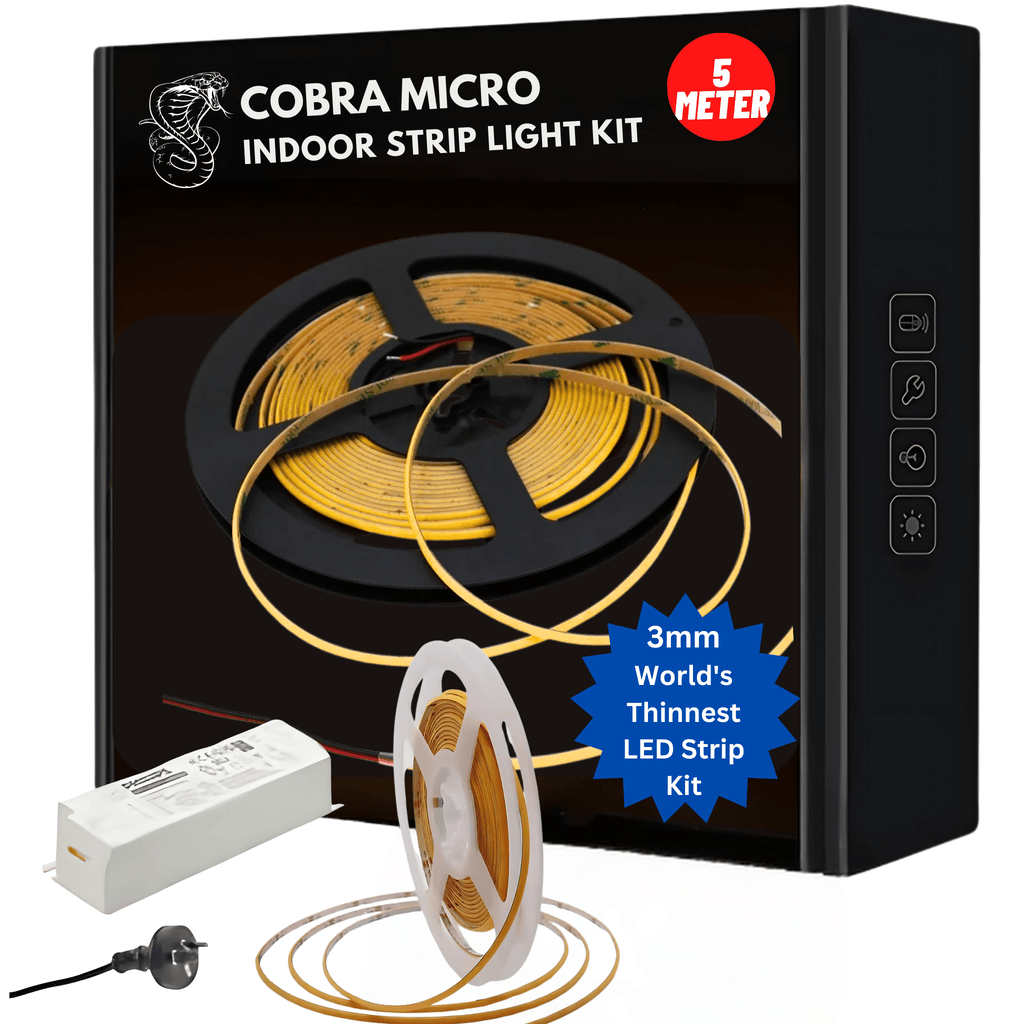

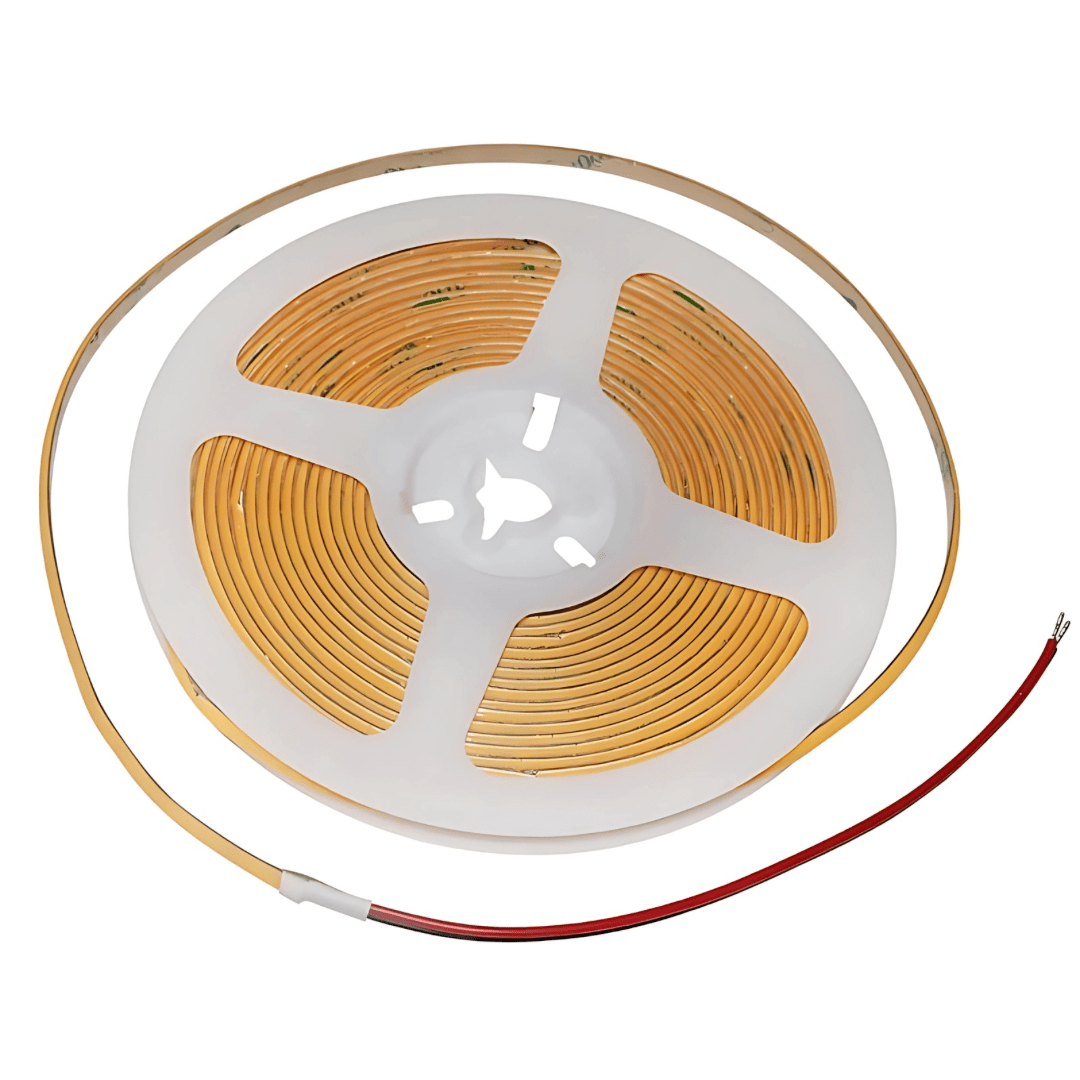

Alternatively you can choose to order a 5 meter uncut reel of strip and cut it on site to suit your required length.
Must be installed on aluminium heat dissipating surface for warranty purposes.

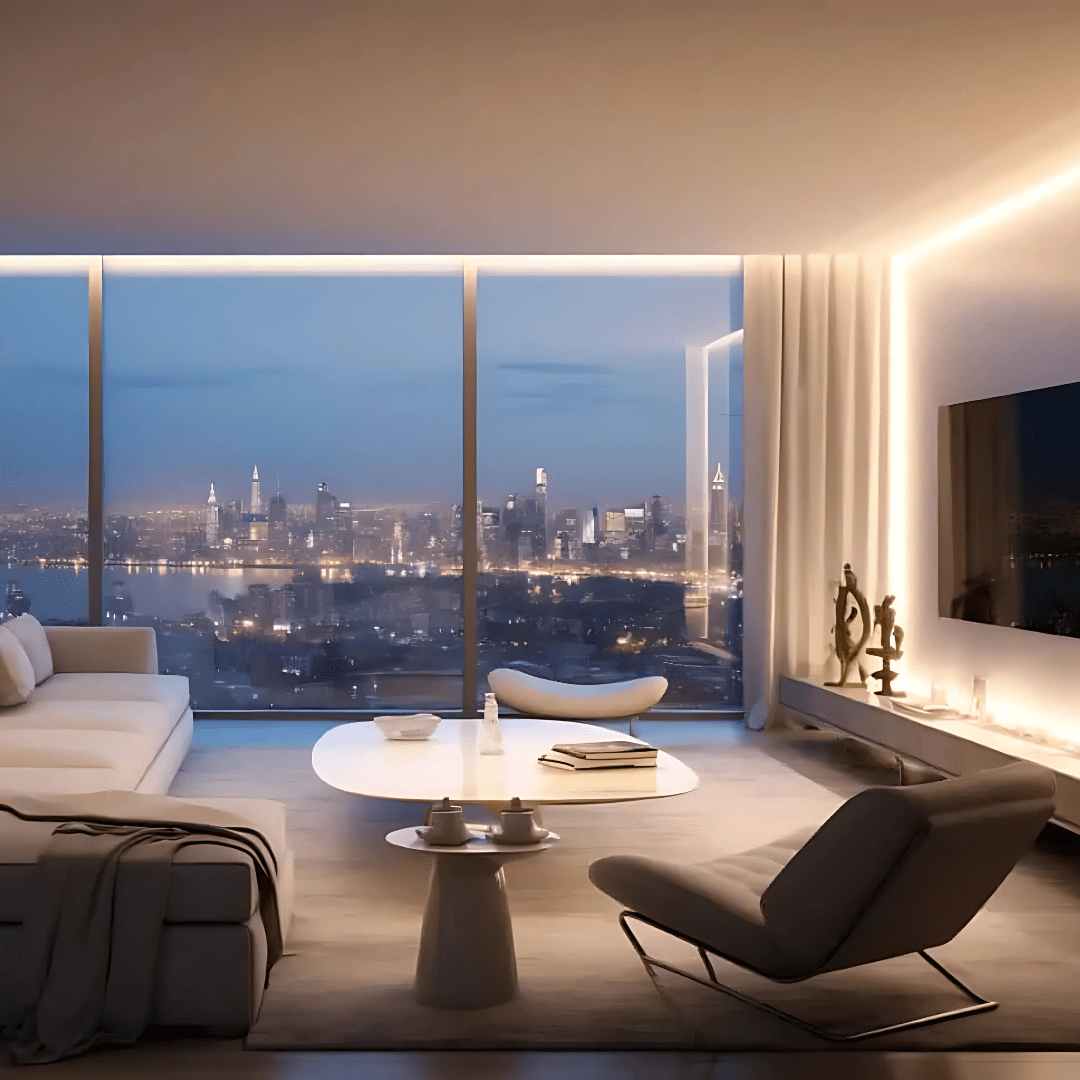

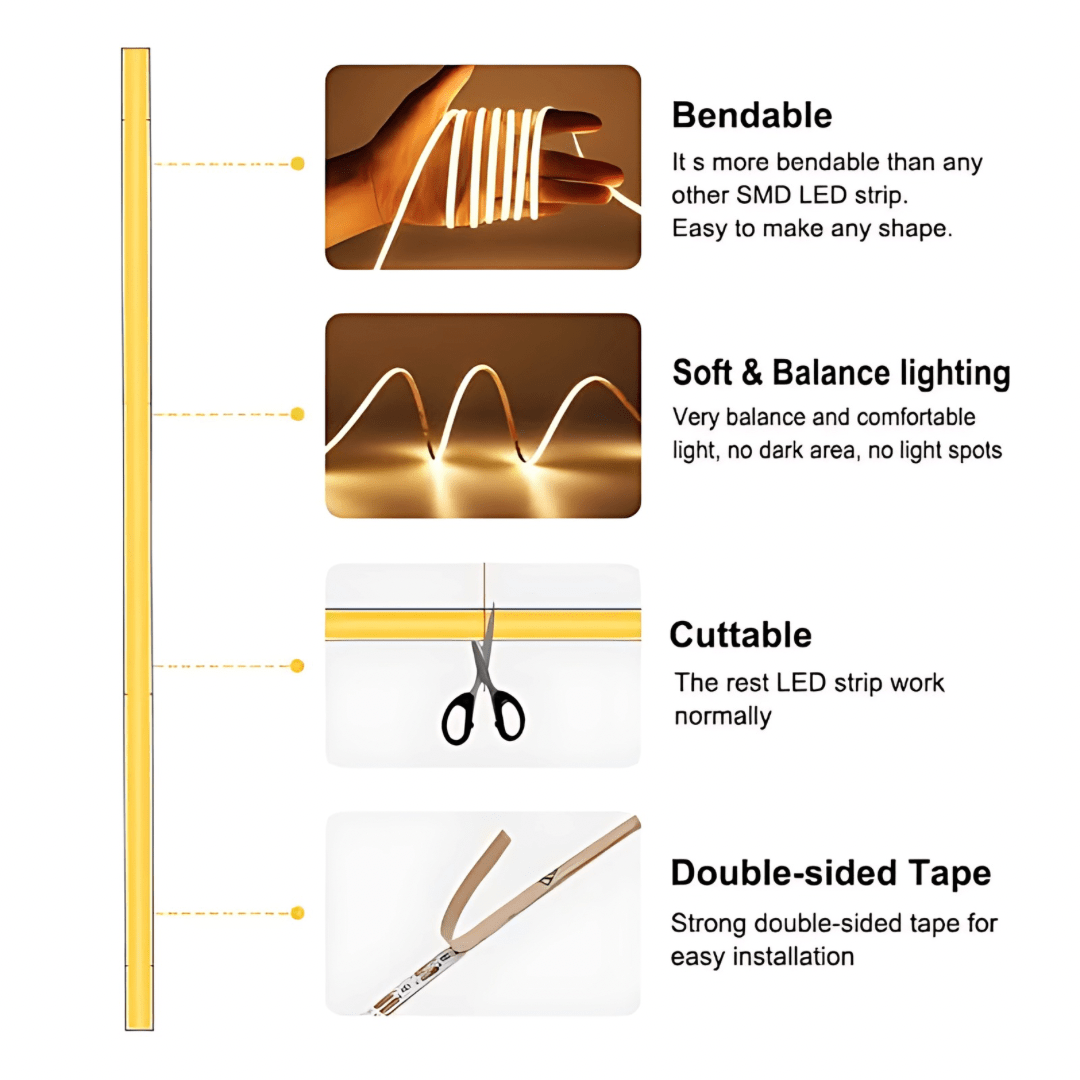

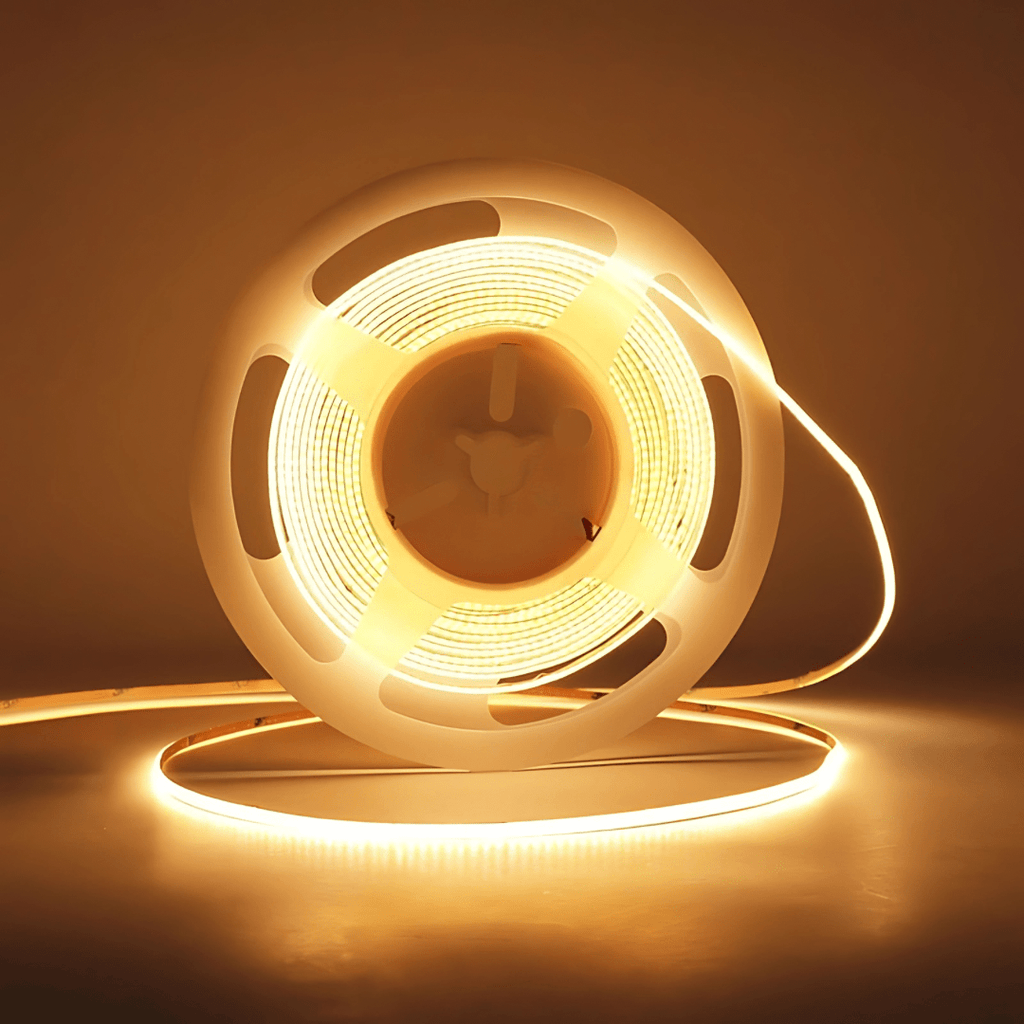

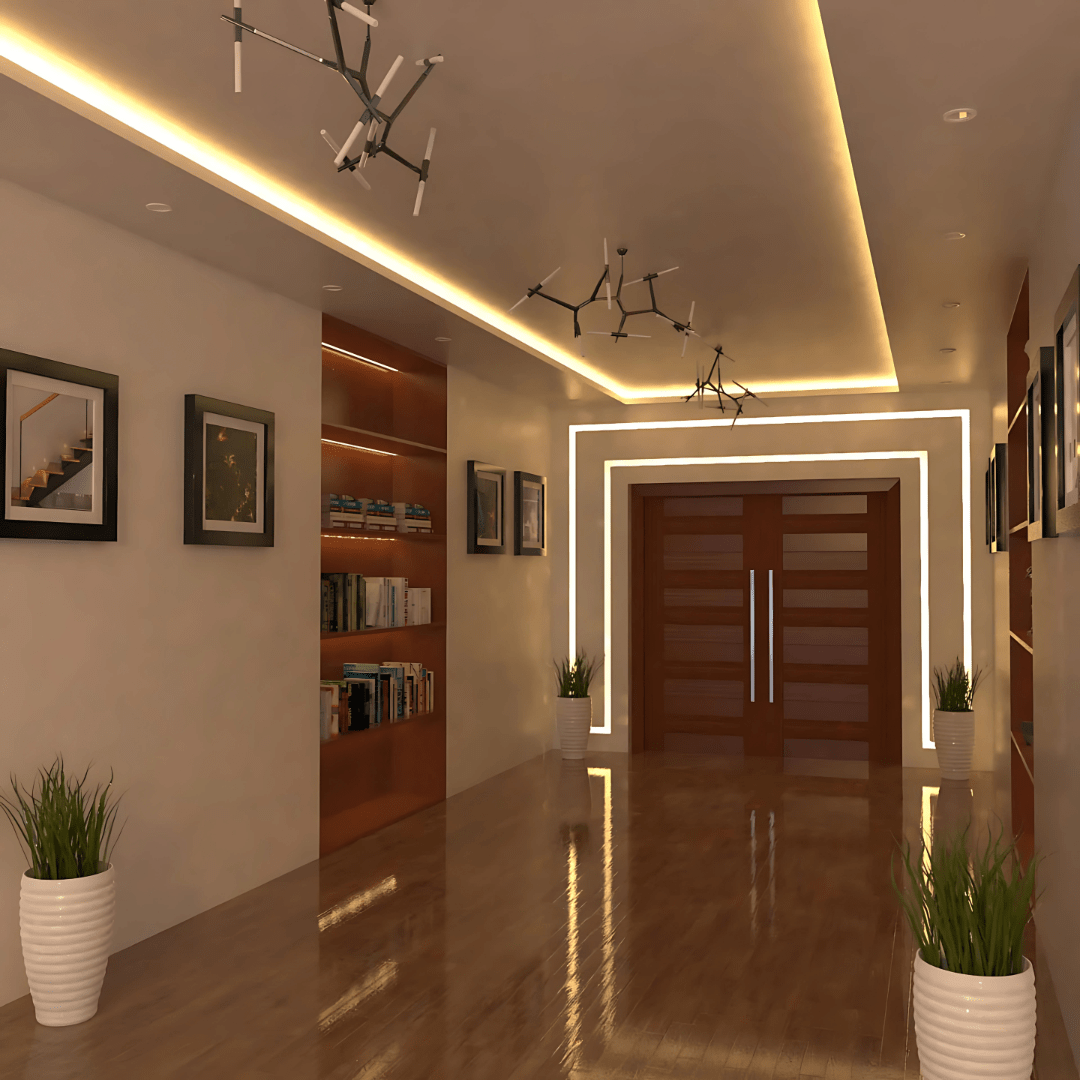

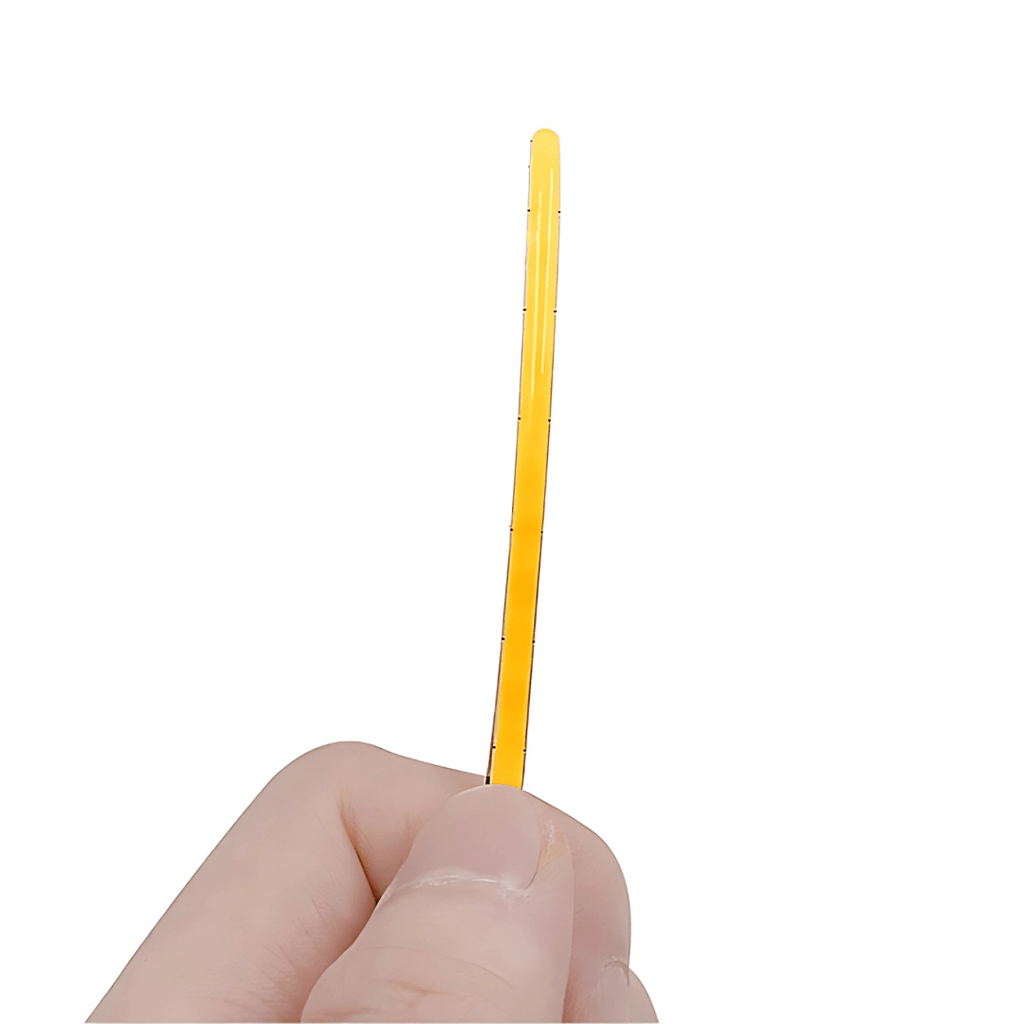

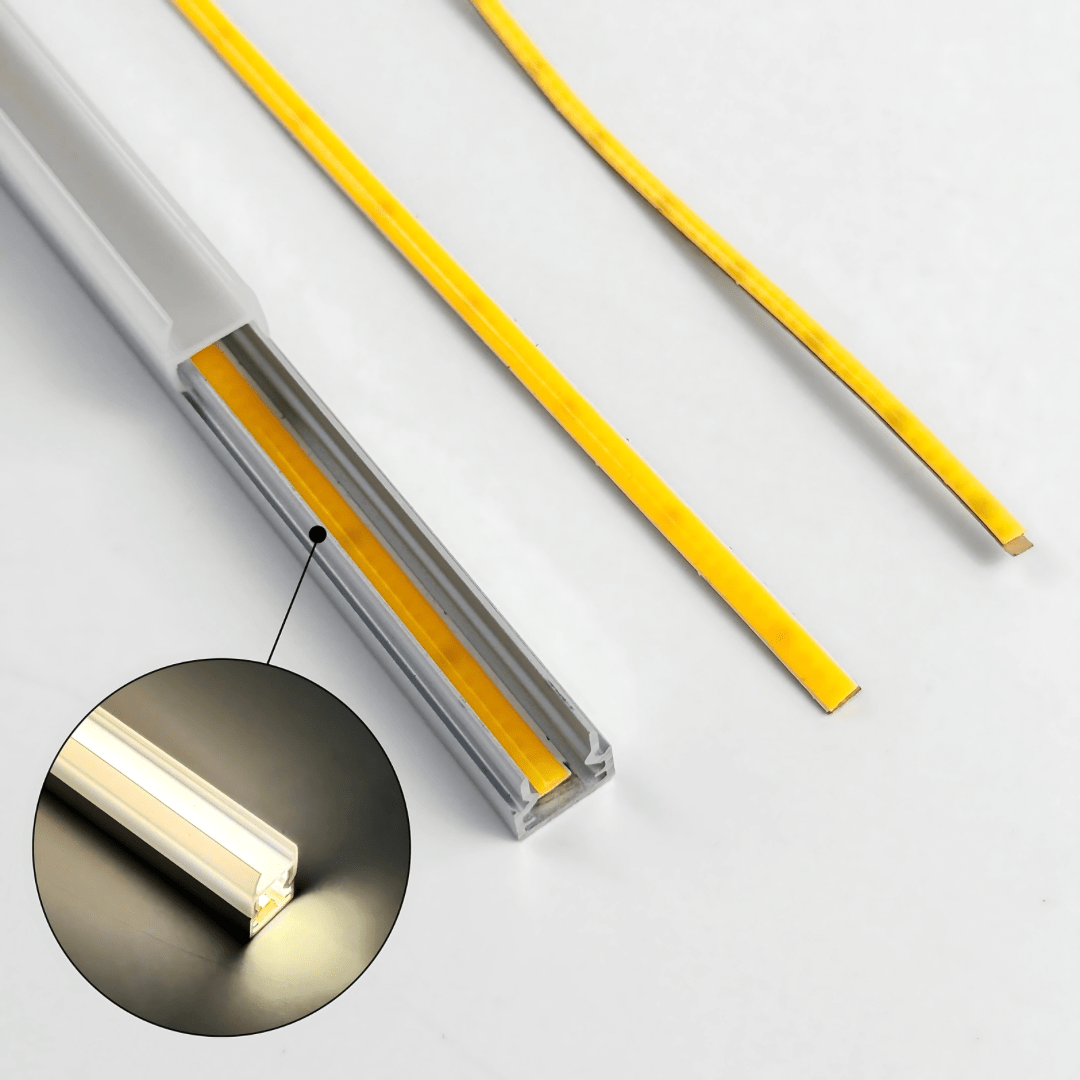

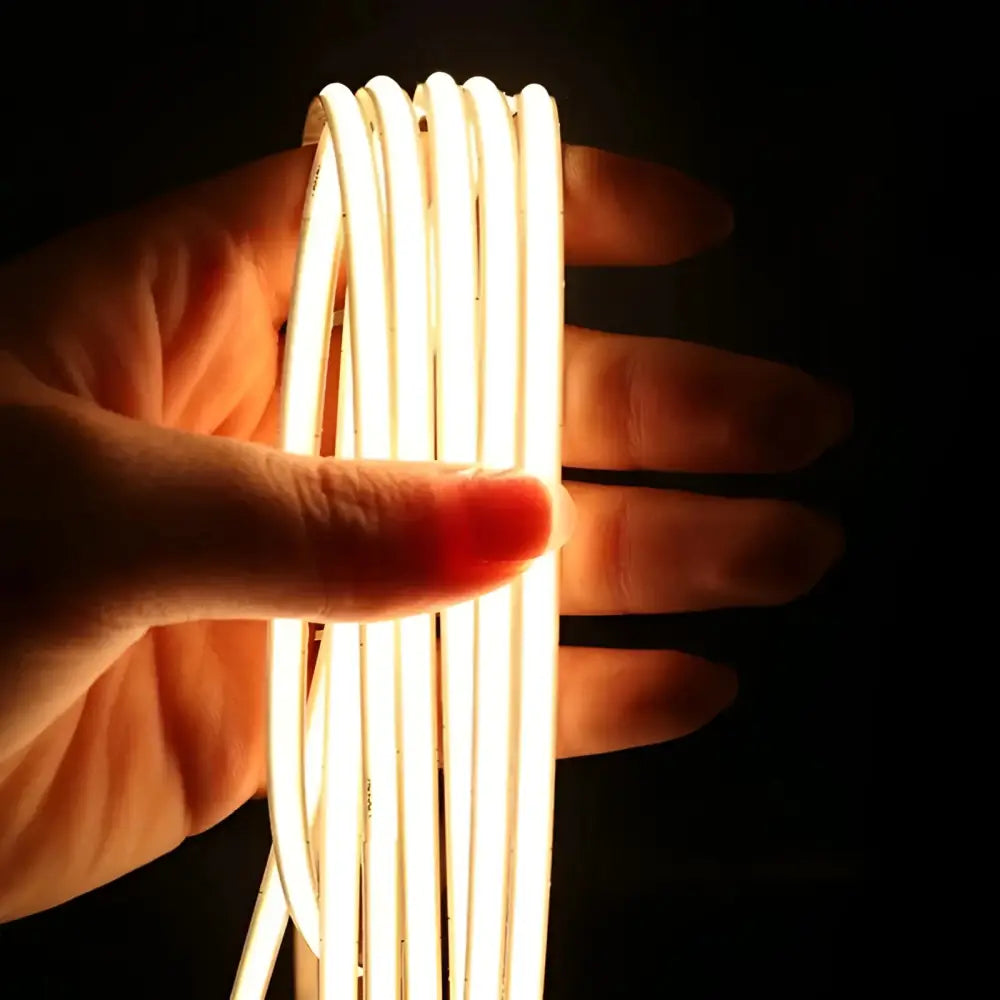

Indulge in the luxuriously seamless visual linear light of our COB Flexible Strip Light, specifically designed to eliminate any distracting dots typically found in traditional strip lights. This unparalleled strip light is perfect for installations where it will be virtually invisible. Its dotless design also allows for the use in aluminium profile with a less opaque profile cover, maximising light transmission without minimising its impact. With 7 watts per meter, it boasts the world's thinnest micro width of 3mm, making it perfect for even the smallest of spaces. Its CRI rating of >90 ensures strikingly accurate colour representation. This indoor/dry environment LED strip carries an IP rating of 20, providing unmatched quality and sophistication.
-
Requires 12Vdc driver (sold separately)
-
Choose from a range of drivers to match the length of flexi-strip required
-
Remote, wall mounted and CONNECT Wi-Fi controllers available as accessories
-
For runs over 5m individual lengths should be connected in parallel
-
Easy clip connector packs available as accessories
Electrical Data |
Voltage |
12 VDC |
Wattage 1m |
7 W |
Current 1m |
0.45 A |
LED Data |
Package Type |
COB (Chip on Board) |
Chips LED |
1 |
LEDs 1m |
384 |
Photometric Data |
Colour Temperature |
3000K |
Colour Rendering Index Ra |
>90 |
Luminous Flux 1m |
700 |
Luminous Efficacy |
100lm\w |
Beam Angle |
120° |
Dimmable |
1 ∼ 100% |
Construction / Protection Data |
Substrate |
Double layer FPCB 3oz |
Mounting |
Double sided tape 3M 9080 |
IP Rating |
IP20 |
Operating Temperature |
-20 ∼ +70 C° |
Storage Temperature |
-20 ∼ +50 C° |
Dimensions |
Cutting increments |
25.0mm |
Length |
5m |
Width |
3.0mm |
Height |
1.2mm |
Lifetime |
Working Life |
50,0000 hrs |
