How To Order
To order the strip light to a specific length (eg 1.3 meters) simply choose the “per meter length” option.
As this strip is charged as a per meter length simply choose quantity 2 and add to cart. You can then “add cart note” and type in the cart note that you require the strip to be 1.3 meters in length.
If you are unsure of this process or you would like some expert guidance please call our office on 1300 589 726.

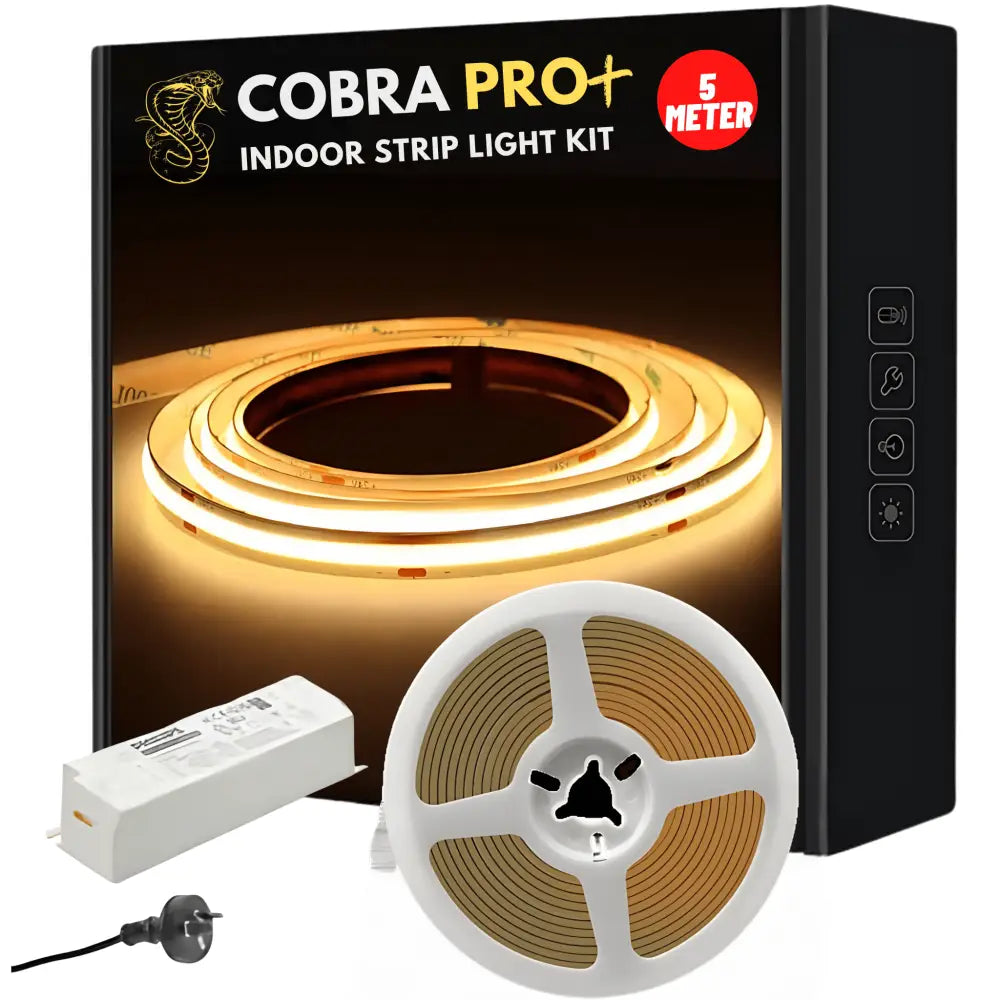

Alternatively you can choose to order a 5 meter uncut reel of strip and cut it on site to suit your required length.

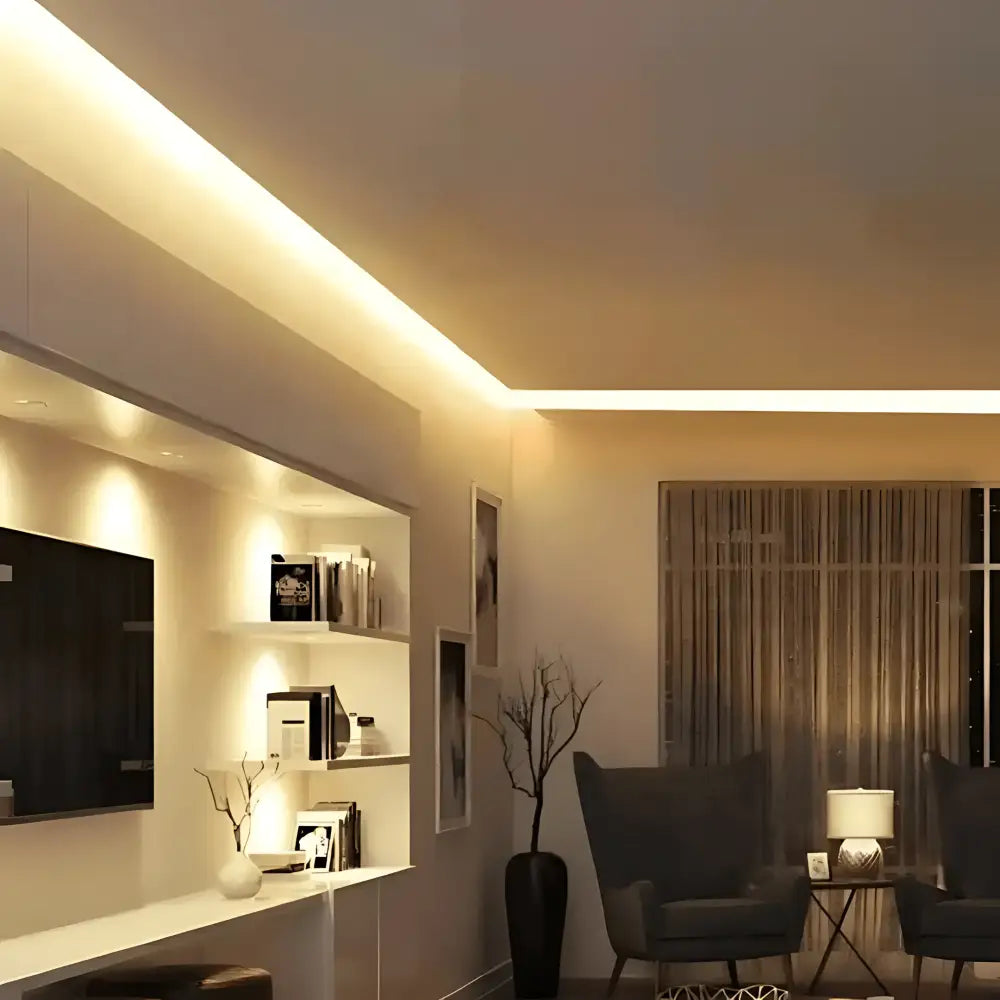

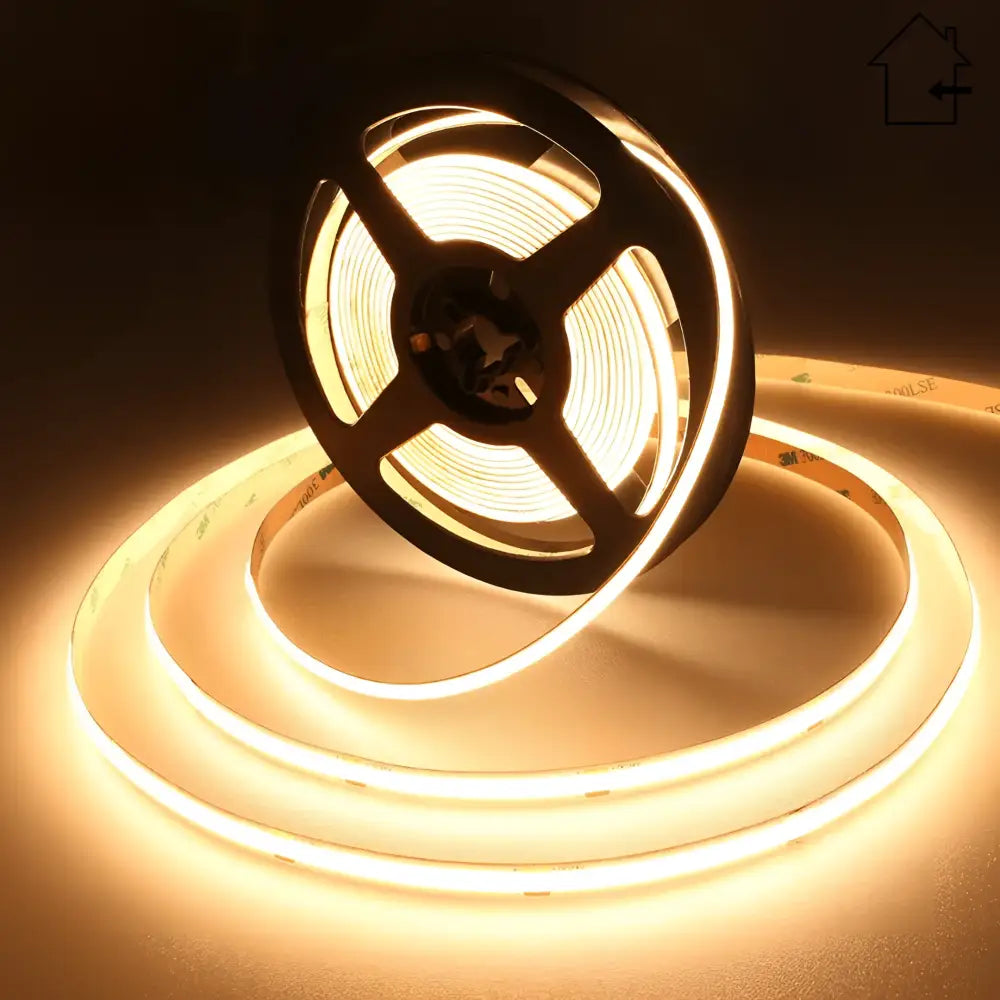

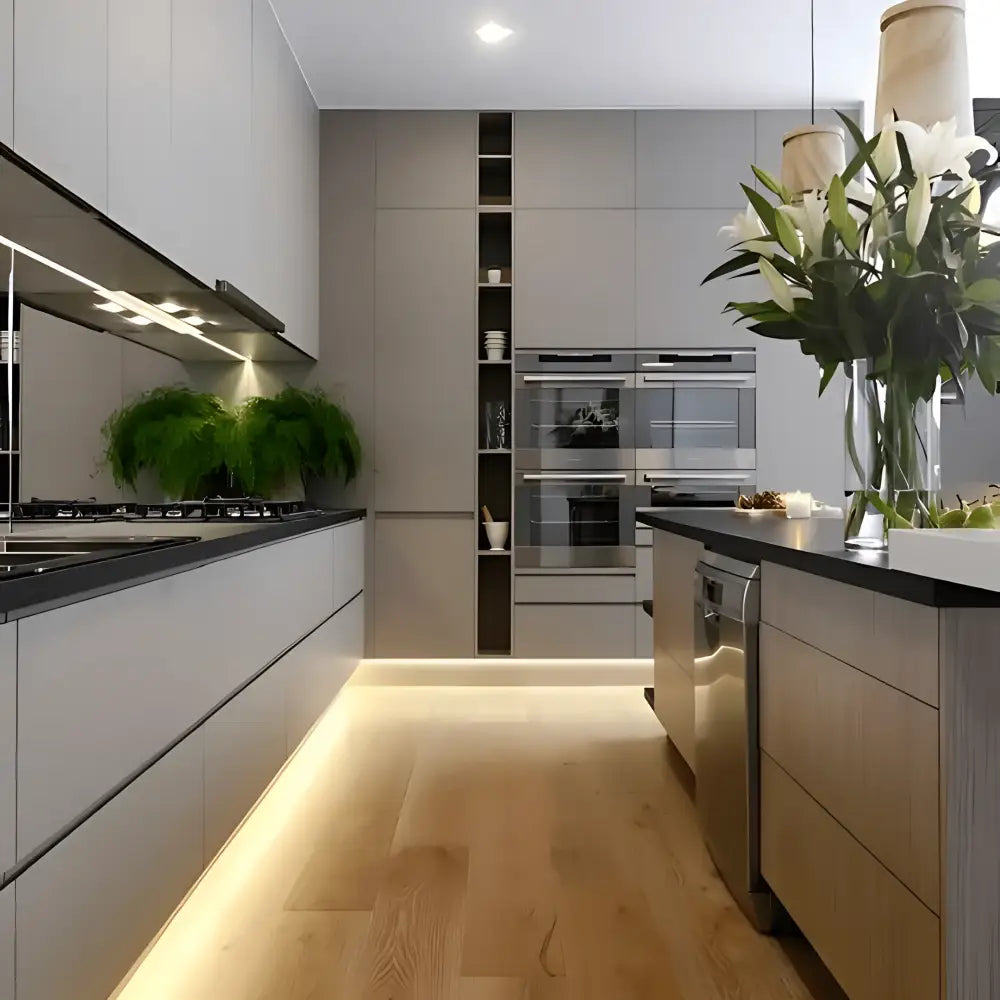

COB LED Strip Light offers a seamless visual linear light, eliminating any visual dots often found with traditional strip light. Ideal for installations where the LED strip will not be mounted within profile but seen. The COB LED Strip Light dotless design also allows the use of a less opaque (diffused) profile cover. This allows more light to transmitted without having to minimise dots.
This LED strip light is rated at 15W/m, producing medium to high levels of light.
CRI is >90, which provides very high true colour representation.
COB is an acronym for: Chip on Board
The PCB is made using 3oz copper, this reduces voltage drop, so allows for a continuous 10m length without visible loss of brightness.
The thermal efficiency of this LED strip means it does not require a heatsink allowing it to be mounted to almost any smooth hard surface.
This LED strip carries an IP rating of 20, this is an indoor / dry environment LED strip only.
- Requires 12V or 24V driver (sold separately)
- Choose from a range of drivers between 60W and 200W to match the length of flexi-strip required
- Remote, wall mounted and CONNECT Wi-Fi controllers available as accessories
- For runs over 5m individual lengths should be connected in parallel
- Easy clip connector packs available as accessories
Electrical Data |
Voltage |
12 or 24 VDC |
Wattage 1m |
15W |
Current 1m |
0.65 A |
LED Data |
Package Type |
COB (Chip on Board) |
Chips LED |
1 |
LEDs 1m |
512 |
Photometric Data |
Colour Temperature |
3000K |
Colour Rendering Index Ra |
>90 |
Luminous Flux 1m |
1500lm |
Luminous Efficacey |
100 |
Beam Angle |
120° |
Dimmable |
1 ∼ 100% |
Construction / Protection Data |
Substrate |
Double layer FPCB 3oz |
Mounting |
Double sided tape |
IP Rating |
IP20 |
Operating Temperature |
-20 ∼ +70 C° |
Storage Temperature |
-20 ∼ +50 C° |
Dimensions |
Cutting increments |
50.0mm |
Length |
5m |
Width |
10.0mm |
Height |
2.0mm |
Lifetime |
Working Life |
70,0000 hrs |
